Projection mapping is revolutionizing how we experience visual content in both artistic and commercial settings. By turning everyday surfaces into dynamic visual displays, this cutting-edge technology is transforming everything from concerts to corporate events. Whether you're an event planner, a digital artist, or a tech enthusiast, understanding projection mapping can open the door to a world of creativity. In this comprehensive guide, we’ll break down what projection mapping is, how it works, its types, and where the future is headed. If you're specifically interested in designing floor-based visuals, you might want to explore our specialized floor mapping software as a great starting point.
What is 3D Projection Mapping?
3D projection mapping is a digital technique where video content is projected onto three-dimensional surfaces. Unlike traditional flat projection onto a screen, 3D projection mapping involves mapping images or animations onto complex surfaces like buildings, cars, or stage sets. It takes into account the geometry and texture of the object, creating illusions of depth, movement, and transformation.
This technology bridges the gap between physical objects and digital imagery, offering an immersive experience that feels tangible and interactive. Through advanced software and spatial calculations, 3D projection mapping brings static surfaces to life.
Difference Between 2D and 3D Projection Mapping
While 2D and 3D projection mapping might sound similar, they differ significantly in complexity and application:
2D Projection Mapping: This technique projects visuals onto flat surfaces such as walls or screens. It does not account for depth or object geometry. Ideal for basic displays, this method is easier to set up and often used for simple advertising or digital signage.
3D Projection Mapping: This form incorporates the actual three-dimensional shape of the projection surface. Using sophisticated video mapping technology, it warps and blends imagery to fit perfectly around the object. The result is an immersive projection that can create illusions of movement, depth, or even breaking apart the physical structure.
For example, in 2D mapping, a building would act as a flat canvas. In 3D mapping, the building's windows, curves, and corners are all accounted for, making it look like it’s changing shape or erupting with color.
The Role of Depth, Texture, and Spatial Awareness
Projection mapping isn’t just about throwing visuals on a surface—it’s about telling stories through space.
Depth: Depth plays a critical role in 3D projection mapping. By simulating depth using shadow, light, and perspective, designers can create lifelike animations that appear to extend into or out of the physical surface.
Texture: Understanding the surface’s texture is vital. Rough, shiny, or uneven surfaces can distort the light and affect how the visuals appear. Projection mapping software must adjust for these textures to ensure visual fidelity.
Spatial Awareness: Successful mapping depends on precise spatial data. Tools like LiDAR scanners or photogrammetry help capture the exact dimensions and features of a space or object. This data is then used to create a digital 3D model that guides the projection.
Together, these elements ensure the projection blends seamlessly with the real-world object, enhancing realism and viewer engagement.
Step-by-Step Breakdown of the Projection Mapping Process
Here’s a simplified yet detailed breakdown of how projection mapping works:
Planning the Concept
Begin by understanding the project’s objective. Are you launching a product? Creating a theater set? Know your goals, audience, and message. Sketch ideas and storyboards to visualize the journey.
Scanning the Surface
Use 3D scanning technology or manual measurement to capture the shape and layout of the target object. Tools like laser scanners or drones can create accurate digital representations.
Modeling in Software
Import the scan data into projection mapping software like MadMapper, HeavyM, or TouchDesigner. Here, you create a digital replica of the physical surface, which becomes your canvas.
Creating the Content
Design animations, graphics, or video content tailored to the contours and features of the 3D model. Adobe After Effects, Blender, and Cinema 4D are commonly used for content creation.
Mapping the Content
Using your projection mapping software, align the digital content with the 3D model so that it fits the real-world object exactly. Adjust for angles, distortions, and scale.
Testing and Calibration
Position your projector(s) and test the projection. Make necessary tweaks in brightness, contrast, and alignment. Sometimes multiple projectors are needed for large-scale projects.
Final Execution
Once satisfied, launch your mapped projection. Depending on the event, this might be a one-time show or a looped display running over hours or days.
Real-World Applications of Projection Mapping
Projection mapping is being embraced across industries for its versatility and visual impact. Here are a few real-world use cases:

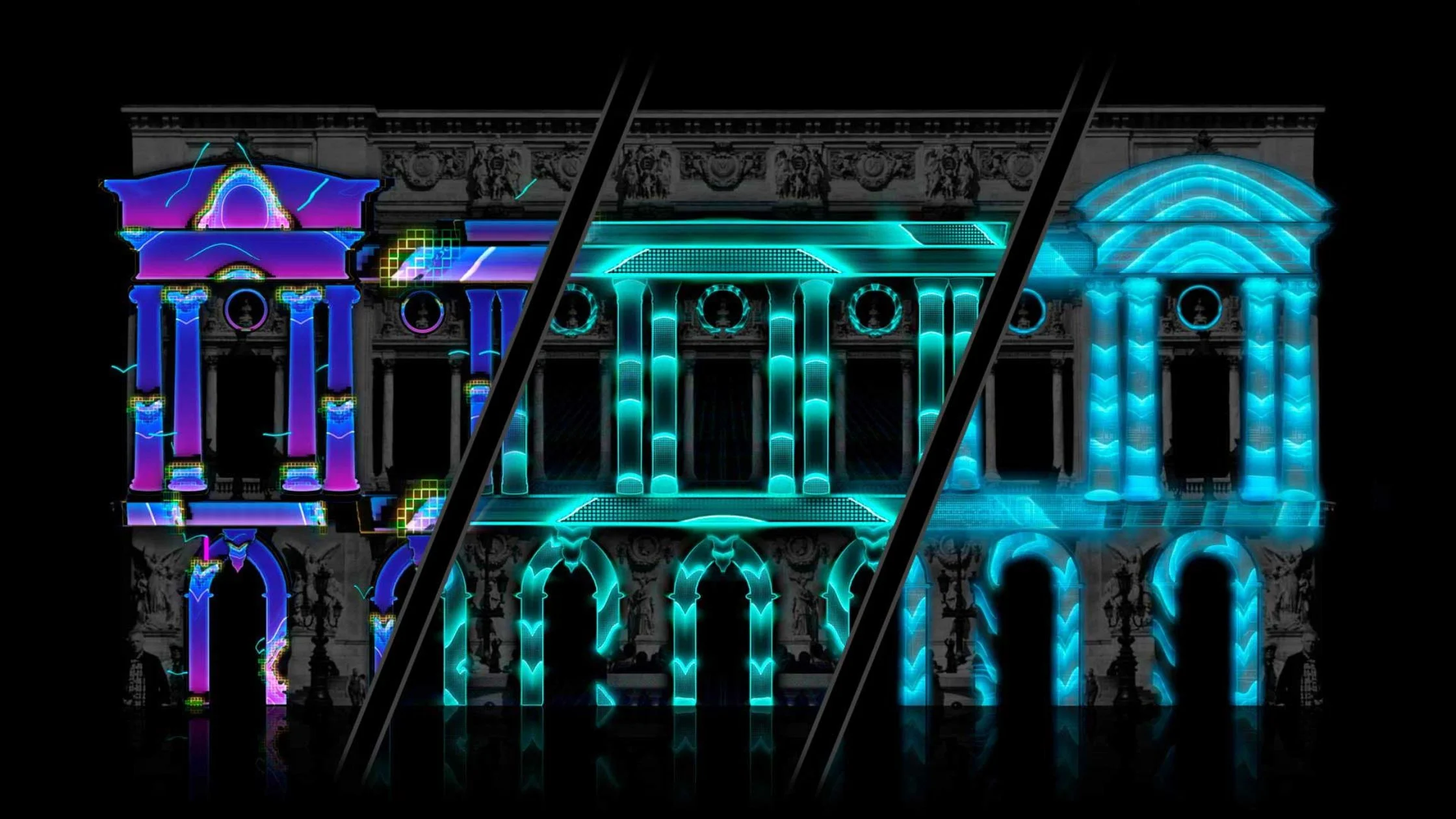

Architectural Mapping
Iconic buildings are transformed into storytelling mediums. During festivals or national celebrations, historical structures become dynamic displays of cultural heritage, animation, and light.
Example: The Sydney Opera House and the Palace of Versailles have been canvases for spectacular immersive projections.
Concerts and Music Festivals
Projection mapping adds a layer of visual storytelling to music performances. Stage designs integrate 3D mapping to synchronize with audio, creating an unforgettable immersive projection.
Example: Artists like Amon Tobin and Deadmau5 have used projection-mapped stage sets to elevate their live performances.
Theater and Performing Arts
Traditional set changes are replaced with projection scenes that shift instantly. This not only saves production costs but opens new creative possibilities.
Example: Broadway productions have integrated projection mapping to simulate different locations or environments on a single stage.
Advertising and Brand Activations
Brands use 3D projection mapping for dramatic, eye-catching campaigns on urban facades or pop-up installations.
Example: Nike and BMW have executed global campaigns where products appeared to burst out of buildings using mapped visuals.
Theme Parks and Attractions
Parks like Disneyland and Universal Studios use mapping to create nighttime shows and immersive rides, blending real sets with animated visuals.
Future Trends in Projection Mapping
As projection technology and software continue to evolve, the future of projection mapping looks brighter and more interactive than ever:
AI-Driven Content Creation
Artificial Intelligence is beginning to play a role in automating content design and spatial alignment. This could significantly speed up production timelines and reduce technical overhead.
Interactive Projection Mapping
With the integration of sensors and motion tracking, projections can now respond to human movement. This allows users to interact with projections in real time, enhancing engagement.
Augmented Reality (AR) Integration
Future systems might combine AR and projection mapping, enabling dual-layered experiences where physical projections and digital overlays coexist.
Miniaturization and Portability
Projectors are becoming smaller and more powerful, enabling mobile projection mapping units for smaller spaces like retail stores or home interiors.
Higher Resolution and Brighter Projections
4K and even 8K projectors are entering the market, allowing for sharper, more detailed visuals. Laser projectors offer better brightness and longer life spans, especially for outdoor and daylight applications.
Conclusion
Projection mapping has transcended its novelty to become a core technology in visual storytelling, branding, entertainment, and immersive experiences. From its foundation in 3D modeling and spatial data to its real-world applications across industries, projection mapping continues to evolve in scope and sophistication.
Whether you're a brand aiming to create a jaw-dropping product launch, an artist pushing the limits of visual design, or an event planner looking for the next wow-factor—projection mapping is a tool you can’t ignore.
At Scale Up Spaces, we're committed to pushing the boundaries of what’s possible with immersive projection. Explore our resources and discover how you can get started—especially with our powerful floor mapping software, designed to make your journey into projection mapping seamless and impactful.
